Elgin National Watch Company, Elgin, Illinois

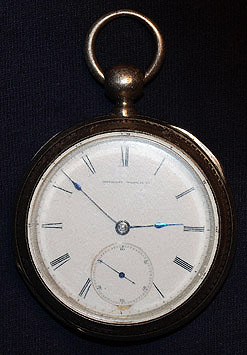

National Watch Co Grade 69, BW Raymond, mfg 1867 John C. Adams, Chicago watchmaker and timekeeper for the railroad serving the Chicago area, along with Benjamin W. Raymond, past Chicago mayor and member of the board of directors of the Chicago and Galena Union Railroad, promoted the construction of a watch factory in the West. The National Watch Company was first incorporated in Chicago, Illinois, in August 1864. The incorporators included Benjamin W. Raymond, past Chicago mayor, Howard Z. Culver, Thomas W. Dickenson, George M. Wheeler, Philip Carpenter, W. Robbins and Edward H. Williams. Several key watchmakers were recruited from the American Waltham Watch Co. in Waltham, Massachusetts. The factory in Elgin, Illinois, thirty miles northwest of Chicago, was completed in 1866.

The first movement, completed in April 1867, was named the B.W. Raymond in honor of Benjamin W. Raymond, the company's president. The watch was an 18-size, 15-jewels, key wind, key set, full plate, quick train and straight line escapement design adjusted to temperature (later assigned grade 69). The second grade introduced was the H. Z. Culver in July 1867, also a 15-jewel, adjusted, high grade, full plate movement. The H. H. Taylor grade was introduced in November 1867, also an adjusted 15-jewel, high grade, full plate movement advertised for use by railroad men.

In 1867 some of the B.W. Raymond grade 15-jewels movements were built with Pennsylvania Rail Road on the dial for service on the Pennsylvania Rail Road.

By 1870 the plant was turning out 25,000 watches each year and employed nearly 300 men and 200 women. During the early part of the 1870's the factory was enlarged. In June 1873 the first stem-wind B. W. Raymond movement was placed on the market. By late 1873 the product line included at least 14 different grades and production was estimated at 100,000 movements per year.

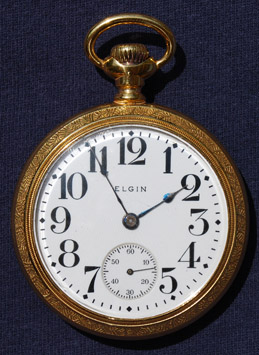

Elgin National 18 Size Grade 240, BW Raymond, Model 8, Grade 240, mfg 1909The National Watch Company, like the American Waltham Watch Company, relied on jewelry wholesalers to distribute the movements it produced. Elgin did not produce watch cases, retail customers would pick out a watch movement and a watch case, a jeweler would fit them together. The National Watch Company employed representatives to help sell the product to wholesalers, and ran advertisements in magazines and newspapers to purchase their movements through local jewelry stores. They also produced the Elgin Almanac from 1871 to 1876 to help advertise watches.

The company officially changed its name to the Elgin National Watch Company in May 1874, as the Elgin name had come into common usage for their watches.

During the mid-1870's the company developed a lower priced line of watches. The 18-size and 16-size watch models were redesigned and smaller size watches for general use were introduced. Prices were also reduced resulting in increased demand.

Elgin became best known for producing the "working man's" mid-grade watches, however, they also produced a number of high grade watches. Elgin watch grades identify the level of quality to which they are finished. Elgin assigned a grade number to a movement of a specific size, jeweling and finish. If a change was made a different grade number would be assigned. Elgin also assigned a name, such as B W. Raymond, to a range of grade numbers of various sizes and jeweling, but finished to the same level of quality.

18 Size Movements Manufactured for Railroad Service

Elgin's first movement, completed in April 1867, was the B.W. Raymond grade, an 18-size, 15-jewels, key wind, key set, full plate, quick train and straight line escapement design adjusted to temperature (later assigned grade 69). The second grade introduced was the H. Z. Culver in July 1867 (later assigned grade 62), also a 15-jewel, adjusted, high grade, full plate movement. The H. H. Taylor grade was introduced in November 1867 (later assigned grade 58), also an adjusted 15-jewel, high grade, full plate movement. Marked "adjusted", all three grades were advertised for use by railroad men.

In June 1873 the first stem-wind B. W. Raymond movement was placed on the market.

An 1892 catalog lists 18-size grades B. W. Raymond, H. H. Taylor, NO. 33, No. 76, No. 126, No. 125, No. 124 and No. 123 as 15-jewels, adjusted and with a patent regulator, meeting railroad service requirements at the time.

An 1896 catalog lists 18-size grades No. 150 (open face, 21-jewel), No. 149 (hunting, 21-jewel), No. 166 (open face, 17-jewel), No. 164 (hunting, 17-jewel), No. 165 (open face, 17-jewel), No. 163 (hunting, 17-jewel), B. W. Raymond (open face or hunting, 17 jewels), No. 148 (open face, 17-jewel), No. 144 (hunting, 17-jewel), No. 147 (open face 17-jewel), No. 143 (hunting, 17-jewel), as adjusted and with a patent regulator, meeting railroad service requirements at the time.

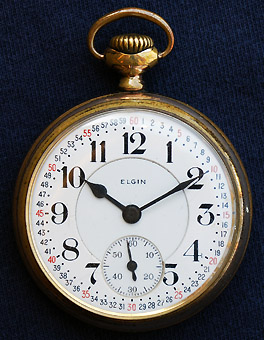

Elgin 16 Size Father Time grade 454, circa 1920A 1903 catalog listed 18-size Veritas (No. 214 open face 23-jewel and No. 239 open face 21-jewel), Father Time (open face and hunting 21-jewel), No. 149 (21-jewel hunting case only), and B. W. Raymond (No. 240 open face 19-jewel, and open face and hunting 17-jewel) as adjusted to temperature, isochronism and positions, with a patent regulator and lever set, meeting railroad service requirements at the time.

A 1913-14 catalog listed 18-size Veritas (21 and 23-jewel), Father Time (21-jewel), B. W. Raymond (21, 19 and 17-jewel), and No. 349 (21-jewel) as adjusted to temperature, isochronism and five positions, with a patent regulator and lever set, meeting railroad service requirements.

16 Size Movements Manufactured for Railroad Service

An 1892 catalog lists several 16-size grades as meeting railroad service requirements at the time, these were grades No. 91 (21-jewel), No. 72 (21-jewel), No. 108 (15-jewel) and No. 107 (15-jewels), No. 4 (15-jewel) and No. 3 (15-jewel).

An 1896 catalog lists 16-size grades listed as meeting railroad service requirements were grades No. 162 (open face, 21-jewel), No. 156 (hunting, 21-jewel), No. 161 (open face, 17-jewel), No. 155 (hunting, 17-jewel), No. 160 (open face, 17-jewel), No. 154 (hunting, 17-jewel), No. 159 (open face, 17-jewel), and No. 153 (hunting, 17-jewel).

A 1903 catalog listed 16-size grades similarly listed were grades No. 162 (21-jewel open face), No. 156 (21-jewel hunting), No. 155 (17-jewel hunting), No. 246 (17-jewel open face). A 1904 advertisement listed the 16-size No. 270 (21-jewel open face) and No. 280 (17-jewel open face), as adjusted to temperature, isochronism and positions, with a patent regulator and lever set, meeting railroad service requirements.

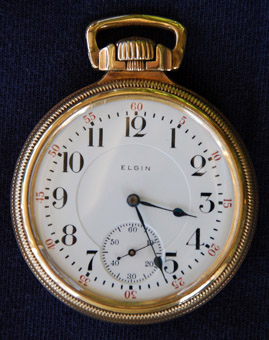

Elgin Grade 375, Veritas movement circa 1911, in a later caseA 1913-14 catalog listed 16-size grades similarly listed were grades Veritas (21 and 23-jewel), Father Time (21-jewel), and B. W. Raymond (21, 19 and 17-jewel) as meeting railroad service requirements.

The company built the Elgin National Watch Company Observatory in 1910 to help maintain scientifically precise times in their watches. Elgin shipped their first wrist watch in 1910.

During World War II all civilian manufacturing was halted and the company moved into the defense industry, manufacturing military watches, chronometers, fuses for artillery shells, aircraft instruments and sapphire bearings used for aiming cannons.

In 1960 Elgin introduced the first American made wrist watch to be qualified for railroad service, the grade 730A, also named B.W. Raymond.

Over time additional plants were operated in Elgin, Aurora, Illinois and Lincoln, Nebraska. The original factory in Elgin closed in 1964, after having produced half of the total number of pocket watches manufactured in the United States (dollar-type not included). In 1964 the company relocated most manufacturing operations to a brand new plant in Blaney, South Carolina, which renamed itself Elgin, South Carolina.

All US manufacturing was discontinued in 1968, and the rights to the name "Elgin" were sold and subsequently resold multiple times over the years.

Elgin railroad grade watches (not all were railroad approved)

Elgin 16 Size Father Time grade 454, circa 1920The following is from a list of railroad grade watches which is generally attributed Webb C. Ball. List appears to be from around 1908-1909. Not all of these were railroad approved even though all are railroad grade.

  • 18 Size: “Pennsylvania Railroad Co.” on dial, 15J & 17J, key wind and set, first model “B.W. Raymond”
  • “No. 349,” seventh model, 17-21J
  • Veritas, 21-23J
  • B.W. Raymond, 17-21J
  • Father Time, 21J
  • 16 Size: Grades 162, 270, 280, or 342 marked on back plate, 17-21J
  • Veritas, 21-23J
  • Father Time, 21J
  • Paillard Non-Magnetic, 19-23J
  • 571, 21J or 572, 19J
  • All wind indicator models



Elgin Production Dates by Serial Number

Note: These are approximate dates, actual dates may vary by years. The serial number being referred to is the serial number on the movement of the watch, not the case.

1867 - 9,000 1885 - 1,855,000 1903 - 10,000,000 1921 - 24,000,000 1939 - 38,200,000
1868 - 25,000 1886 - 2,000,000 1904 - 11,000,000 1922 - 25,100,000 1940 - 39,100,000
1869 - 40,000 1887 - 2,500,000 1905 - 12,000,000 1923 - 26,050,000 1941 - 40,200,000
1870 - 50,000 1888 - 3,000,000 1906 - 12,500,000 1924 - 27,000,000 1942 - 41,100,000
1871 - 185,000 1889 - 3,500,000 1907 - 13,000,000 1925 - 28,421,000 1943 - 42,000,000
1872 - 201,000 1890 - 4,000,000 1908 - 13,500,000 1926 - 29,100,000 1944 - 42,500,000
1873 - 325,000 1891 - 4,449,000 1909 - 14,000,000 1927 - 30,050,000 1945 - 43,200,000
1874 - 400,000 1892 - 4,600,000 1910 - 15,000,000 1928 - 31,599,000 1946 - 44,000,000
1875 - 430,000 1893 - 5,000,000 1911 - 16,000,000 1929 - 32,000,000 1947 - 45,000,000
1876 - 480,000 1894 - 5,500,000 1912 - 17,000,000 1930 - 32,599,000 1948 - 46,000,000
1877 - 520,000 1895 - 6,000,000 1913 - 17,339,000 1931 - 33,000,000 1949 - 47,000,000
1878 - 570,000 1896 - 6,500,000 1914 - 18,000,000 1932 - 33,700,000 1950 - 48,000,000
1879 - 625,000 1897 - 7,000,000 1915 - 18,587,000 1933 - 34,558,000 1951 - 50,000,000
1880 - 750,000 1898 - 7,494,000 1916 - 19,000,000 1934 - 35,000,000 1952 - 52,000,000
1881 - 900,000 1899 - 8,000,000 1917 - 20,031,000 1935 - 35,650,000 1953 - 53,500,000
1882 - 1,000,000 1900 - 9,000,000 1918 - 21,000,000 1936 - 36,200,000 1954 - 54,000,000
1883 - 1,250,000 1901 - 9,300,000 1919 - 22,000,000 1937 - 36,978,000 1955 - 54,500,000
1884 - 1,500,000 1902 - 9,600,000 1920 - 23,000,000 1938 - 37,900,000 1956 - 55,000,000

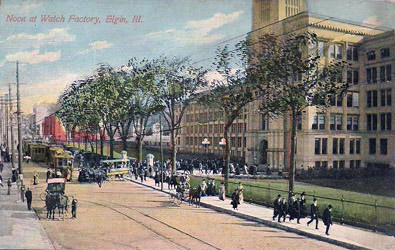

Elgin Factory view of the front, S. Dunser, Publisher Noon at the Elgin Watch Factory (vintage post card)

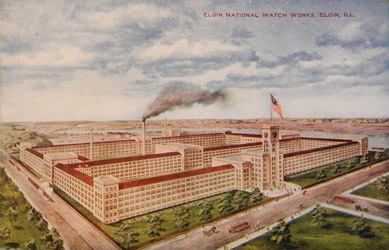

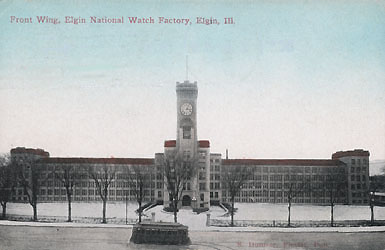

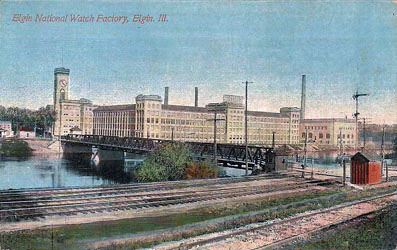

Elgin National Watch factory west and front wing Elgin National Watch Co. Elgin, Illinois

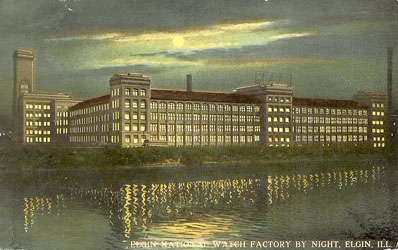

Elgin National Watch factory at night Elgin on a watch advertisement circa 1900

Elgin Factory, Drilling PlatesLinks to other sites for additional information:

Elgin Watch Collectors Site - Information on watches from the Elgin National Watch Company, its history and technical details.

Pocket Watch Database: - Serial number lookup and information for Hamilton, South Bend, Illinois, Rockford, Waltham & Elgin.

For Additional Reading:

Abbott, Henry G. The Watch Factories of America Past and Present: A complete history of Watch Making in America, from 1809 to 1888 Inclusive. Geo. K Hazlitt & Co. Chicago, 1888, reprinted by Forgotten Books, Lexington, KY, 2012.

Alft, E. C. and Briska, William H. Elgin Time: A History of the Elgin National Watch Company. Elgin Historical Society, 2003, Elgin, Illinois. ISBN 0-943963-94-X

Erhardt, Roy and William "Bill" Meggers Jr., American Pocket Watches: Identification and Price Guide Beginning to End, Heart of America Press, Kansas City, MO, 1987.

Ehrhardt, Roy, Elgin Watch Company: Identification and Price Guide. Heart of America Press, 1976, Kansas City, Missouri. ISBN 0-913902-09-S



Watch Manufactures:
 American Waltham  Aurora  Ball  Columbus  Elgin National  Hamilton  Hampden  E.Howard  Illinois  Peoria  Rockford  South Bend  Seth Thomas  U.S.Marion  U.S.Waltham

Sharing A Heritage   Railroad History   Train Technology   Railroad Operation   Railroad Time   Museums & Heritage Railroads   Railroads Today


Pacific Time

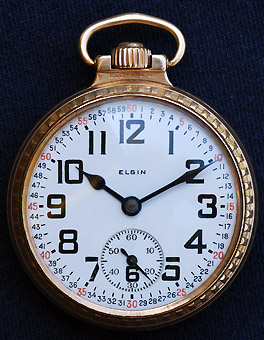

 DigitalNetExpress.comPhotos: 1) National Watch Co. Grade 69 BW Raymond, mfg 1867, 2) Elgin National Grade 240,Model 8, BW Raymond, mfg 1909, 3) Elgin Grade 454 Father Time, circa 1920, 4) Elgin Grade 375 Veritas, circa 1911, 5) Elgin 16 Size B. W. Raymond Grade 478, circa 1925, 6) Elgin National Watch Co. Elgin, Illinois (post card) 7) Noon at the Watch Factory, Elgin (post card), 8) Elgin National Watch Co. West and Front (post card), 9) Elgin National Watch Co. at night (post card), 10) Elgin Ad circa 1900. Part of the material used for research courtesy of the National Association of Watch and Clock Collectors Library and Research Center. A special thank you to the private collectors for the use of the watches photographed.
